Mergers

The Mergers page in the application allows users to define and manage mergers. Mergers are used to combine data from various variables into a single output, which is then stored in a destination variable. This is useful for constructing complex strings, JSON objects, or XML structures from multiple pieces of information.

Overview

The page provides functionalities to:

• Add new mergers.
• List existing mergers, filtered by the selected agent.
• Edit existing mergers.
• Associate mergers with specific agents.
• Delete mergers.

Adding a New Merger

To add a new merger:

1. Navigate to the Mergers page.
2. Expand the "New Merger" section.
3. A form will appear with the following fields:
   • Lookup Names: (Button) Opens a dialog for looking up existing names of variables, prompts, APIs, etc., which can be useful when constructing the merge template.
   • Merger Name: (Text Input) A unique and descriptive name for the merger (e.g., "CreateCustomerJSON", "BuildResponseMessage").
   • Status: (Toggle) Activates or deactivates the merger. Default is True (active).
   • Agent(s): (Multiselect) Select one or more agents that will be able to use this merger.
   • Destination Variable: (Selectbox) The variable where the result of the merge operation will be stored.
   • Output Type: (Selectbox) The format of the merged output. Options: json, xml, text.
   • Merge Template: (Text Area) The template string that defines how data from variables will be combined. Supports embedding variables using {var["variableName"]}.
   • Example for JSON output: {"name": "{var["firstName"]} {var["lastName"]}", "email": "{var["emailAddress"]}"}
   • Example for text output: Hello {var["userName"]}, your order number is {var["orderId"]}.
4. Click the "Create Merger" button.
5. Upon submission, the system stores the merger configuration.

Listing Mergers

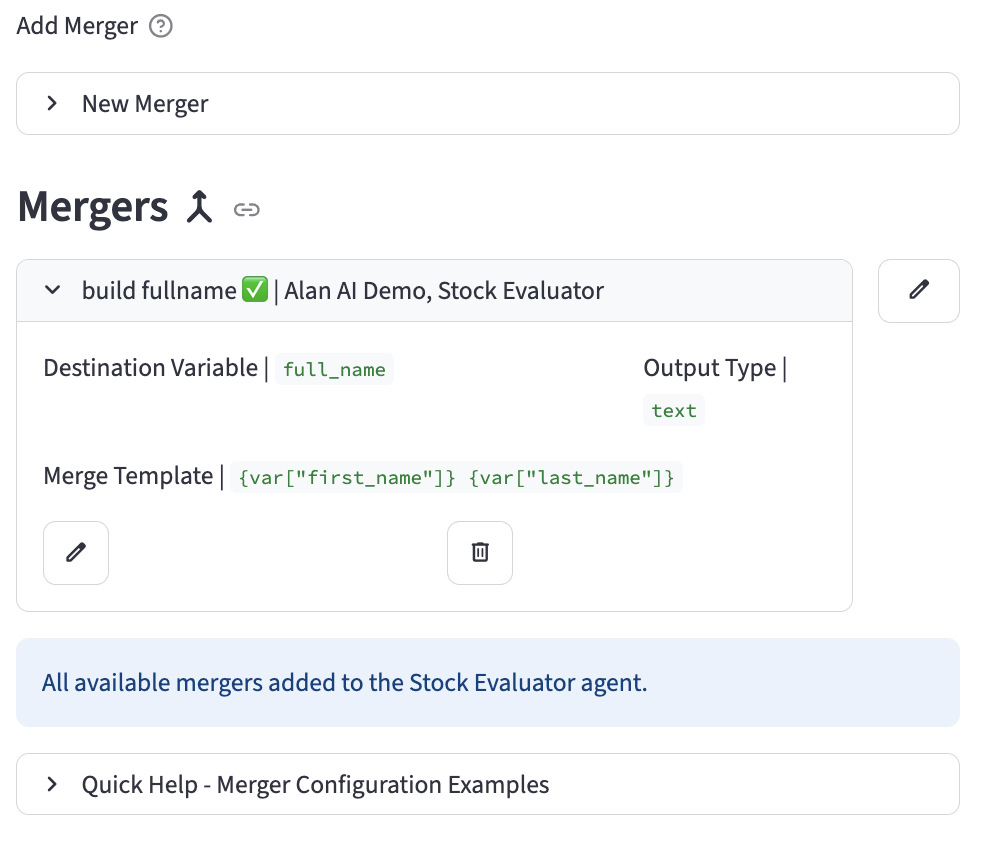

Existing mergers are listed under the "Mergers" subheader.

• Filtering: The list is automatically filtered to display mergers associated with the globally selected agent (if an agent is selected).
• Display: Each merger is shown in an expandable section, displaying its name, status (✅ for active, ❌ for inactive), and associated agents.
• Details: Expanding a merger's section reveals:
• Destination Variable
• Output Type
• Merge Template
• Each merger entry has "Edit" and "Delete" buttons.

Editing a Merger

To edit an existing merger:

1. Click the "Edit" button next to the desired merger in the list.
2. The "Edit [Merger Name]" form will appear, pre-filled with the merger's current information.
3. All fields from the "Add Merger" form are available for modification. Additionally:
   • Lookup Names: (Button) Available for looking up system names.
   • Add Variable: (Button) Opens a dialog to quickly add a new variable if needed during configuration.
4. Click "Save Changes" to update the merger or "Cancel" to discard changes and hide the edit form.

Adding an Agent to a Merger

If an agent is selected (via the global agent selector), a section appears allowing you to associate existing mergers (that are not already associated with the selected agent) to that agent.

• A dropdown lists "Available mergers for [Selected Agent Name] Agent:".
• Select a merger and click "Include Merger" to add the selected agent to that merger's merger_agents list.

Deleting a Merger

To delete a merger:

1. Click the "Delete" button next to the desired merger in the list.
2. Confirm the deletion when prompted. The merger will be permanently removed from the database.

Quick Help - Merger Configuration Examples

Mergers are used to combine multiple variables into a single new variable using a template. This is useful for creating formatted strings, JSON objects, or other structured data.

Using Dynamic Variables: You can embed variables from the agent's session state into the Merge Template field. The syntax is {var["variable_name"]}.

---

Example 1: Creating a Full Name (Text Output)

This merger combines a first and last name into a single full_name variable.

• Merger Name: build fullname
• Destination Variable: full_name
• Output Type: text
• Merge Template:

{var["first_name"]} {var["last_name"]}

If var["first_name"] is "Jane" and var["last_name"] is "Doe", the full_name variable will be set to "Jane Doe".

---

Example 2: Creating a JSON Payload

This merger constructs a JSON object to be used later, perhaps in an API call.

• Merger Name: create_user_payload
• Destination Variable: user_api_body
• Output Type: json
• Merge Template:

{
    "user": {
        "email": "{var["email"]}",
        "profile": {
            "firstName": "{var["first_name"]}",
            "lastName": "{var["last_name"]}"
        }
    }
}

This will create a JSON object in the user_api_body variable.

This documentation should provide a good understanding of how to use the Mergers page.
